Troubleshooting OpenID-Connect Authentication on Containers
The goal of this blog post is to provide a basic understanding of how to troubleshoot ManageIQ configured for OpenID-Connect authentication when deploying ManageIQ on containers.
The examples were generated using OpenShift.
Contents:
- Configure ManageIQ For OpenID-Connect Authentication
- My ManageIQ OpenID-Connect Authentication Configuration Is Broken
- Reporting Issues
- Known Issues
Configure ManageIQ For OpenID-Connect Authentication
Currently Containerized ManageIQ only supports the OpenID-Connect authentication configuration.
ManageIQ uses Apache’s mod_auth_openidc module to support OpenID-Connect authentication. The instructions for configuring Apache’s mod_auth_openidc for ManageIQ differ for the appliance deployment and the podified (Kubernetes) deployment.
-
The instructions for configuring OpenID-Connect for a ManageIQ appliance can be found here: ManageIQ OpenID-Connect Authentication User Reference
-
The instructions for configuring OpenID-Connect for a podifed deployment of ManageIQ can be found here: ManageIQ Operator README
My ManageIQ OpenID-Connect Authentication Configuration Is Broken
The first thing a user of ManageIQ does is to log in. Therefore if there are any issues with authentication configuration the user is likely to file an issue that ManageIQ is not usable for them.
Many of the issues reported as ManageIQ authentication problems are not directly related to ManageIQ. Instead many are rooted in failures with the configuration of the underlying authentication technology.
This blog post attempts to provide some guidelines for troubleshooting Containerized ManageIQ authentication issues. The guidelines in this blog post are specific to ManageIQ running in Containers (Kubernetes, OpenShift )
The below sections identify key items to check and/or ask the user to gather when reporting Containerized ManageIQ authentication issues.
The ManageIQ Login Screen
Question Does the ManageIQ login screen contain the “Log In to Corporate System” button?
If ManageIQ is correctly configured for OpenID-Connect authentication the ManageIQ login screen will have a blue Log in to Corporate System button.
Screenshot showing the ManageIQ login screen with the Log in to Corporate System button:
If ManageIQ is not correctly configured for OpenID-Connect authentication the ManageIQ login screen may be missing the blue Log in to Corporate System button.

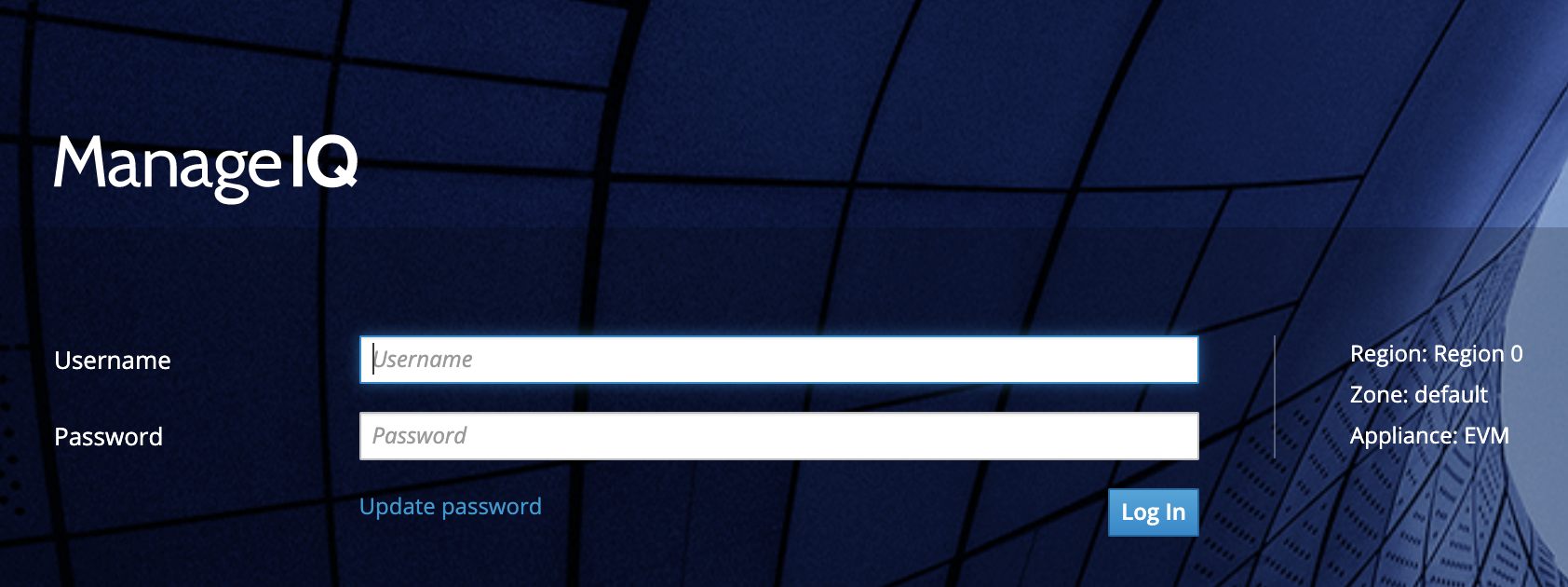

Screenshot showing the ManageIQ login screen without the Log in to Corporate System button:
State Of The ManageIQ Pods
Question Are all of the ManageIQ pods running?
After the ManageIQ Custom Resource (CR) has been created it may take a while for all the pods to transition to Running status.
For instructions on creating the ManageIQ CR see: ManageIQ Operator README
The following example shows how to check the state of the pods in the ManageIQ project.
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc get pods -n my-miq-project
NAME READY STATUS RESTARTS AGE
1-event-handler-abcdef1234-12345 1/1 Running 0 22d
1-event-handler-abcdef1234-12345 1/1 Running 0 22d
1-generic-abcdef1234-12345 1/1 Running 0 22d
1-generic-abcdef1234-12345 1/1 Running 0 22d
1-priority-abcdef1234-12345 1/1 Running 0 22d
1-priority-abcdef1234-12345 1/1 Running 0 22d
1-remote-console-abcdef1234-12345 1/1 Running 0 22d
1-reporting-abcdef123-12345 1/1 Running 0 22d
1-reporting-abcdef123-12345 1/1 Running 0 22d
1-schedule-abcdef1234-12345 1/1 Running 0 22d
1-ui-abcdef1234-12345 1/1 Running 0 22d
1-web-service-abcdef1234-12345 1/1 Running 0 22d
httpd-abcdef1234-12345 1/1 Running 0 22d
manageiq-operator-abcdef1234-12345 1/1 Running 0 22d
memcached-abcdef1234-12345 1/1 Running 0 22d
orchestrator-abcdef123-12345 1/1 Running 0 22d
postgresql-abcdef1234-12345 1/1 Running 0 22d
If all of the pods in the ManageIQ project do not transition to Running Status something may have failed.
ManageIQ Orchestrator Pod Log
Question Are there any errors in the Orchestrator pod logs?
Many things could prevent the ManageIQ pods from transitioning to the Running status including issues with the Container infrastructure.
It is beyond the scope of this document to descibe how to evaluate container infrastructure soundness but that should be confirmed. After the stability of the container infrastructure has been confirmed check the orchestrator pod for errors.
The orchestrator pod will log any errors encountered creating the other pods in the ManageIQ deployment. The following example shows how to check the orchestrator pod’s logs.
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc logs orchestrator-abcdef123-12345 -n my-miq-project
ManageIQ Operator Pod Log
Question Did the orchestrator pod fail to start?
If the orchestrator pod failed to transition to the Running status the manageiq-operator pod will log any errors encountered creating the orchestrator pod.
The following example shows how to check the operator pod’s logs.
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc logs manageiq-operator-abcdef1234-12345 -n my-miq-project
ManageIQ HTTPD Pod Log
Question Are there any errors in the HTTPD pod logs?
When deploying ManageIQ in containers one pod is used to manage the authentication configuration. This blog post is specific to the OpenID-Connect configuration, which is implemented using the mod_auth_openidc Apache module.
The HTTPD pod is used to configure Apache’s mod_auth_openidc module.
Therefore the httpd pod’s log file may contain errors related to mod_auth_openidc configuration.
The orchestrator pod will log any errors encountered creating the other pods in the ManageIQ deployment.
The following example shows how to check the httpd pod’s logs.
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc logs httpd-abcdef123-12345 -n my-miq-project
OpenID-Connect Provider Accessible
Question Can user data be obtained from the OpenID-Connect Provider?
ManageIQ has a REST API. There is a blog post that describes how to use the ManageIQ REST API when configured with OpenID-Connect. see: Using the API with OpenID-Connect Authentication
One of the steps described in this blog post in the Example: Using a JWT Token contains an optional step to do an introspection to the OpenID-Connect provider for a specific user.
The following snippet from the Using the API with OpenID-Connect Authentication blog post shows the commands that will directly query the OpenID-Connect Provider for a specific user.
# Accessing the ManageIQ API with the access_token from a JWT Token
# Step 1: Request the JWT Token from the OpenID-Connect provider
jwt_token=$(curl -k -L --user ${user}:${password} -X POST -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=password" -d "client_id=${oidc_client_id}" -d "client_secret=${oidc_client_secret}" -d "username=${user}" -d "password=${password}" ${oidc_provider_token_endpoint} )
# Step 2: Retrieve the access_token from the JWT
access_token=$(echo $jwt_token | jq -r '.access_token')
# Step 3 (OPTIONAL) Use the access_token to do an introspection to get the details for the user associated with the JWT
curl -k -L --user ${oidc_client_id}:${oidc_client_secret} -X POST -H "Content-Type: application/x-www-form-urlencoded" -d "token=${access_token}" ${oidc_auth_introspection_endpoint}
The output from the above introspection curl command should look similar to this:
"name": "Bob Youruncle",
"given_name": "Bob",
"family_name": "Youruncle",
"preferred_username": "byouruncle",
"email": "byouruncle@example.com",
...
"domain": "byouruncle.example.com",
"groups": [
"EvmGroup-super_administrator"
],
"username": "byouruncle",
If an issue is encountered where a specific user is unable to log in it would be valuable to confirm this introspection returns the expected data, when performed for the failing user.
Capturing User Request Headers
Question Are the user request headers valid?
It is possible to request extra debug output from the ManageIQ authentication code. If enabled, when a user attempts to log in the user claims returned from Apache’s mod-auth-openidc module will be written to the UI pod’s log.
To enable the authentication debug data to be logged, first log into the MangeIQ user interface as the admin user and access the Advanced settings on the configuration page.

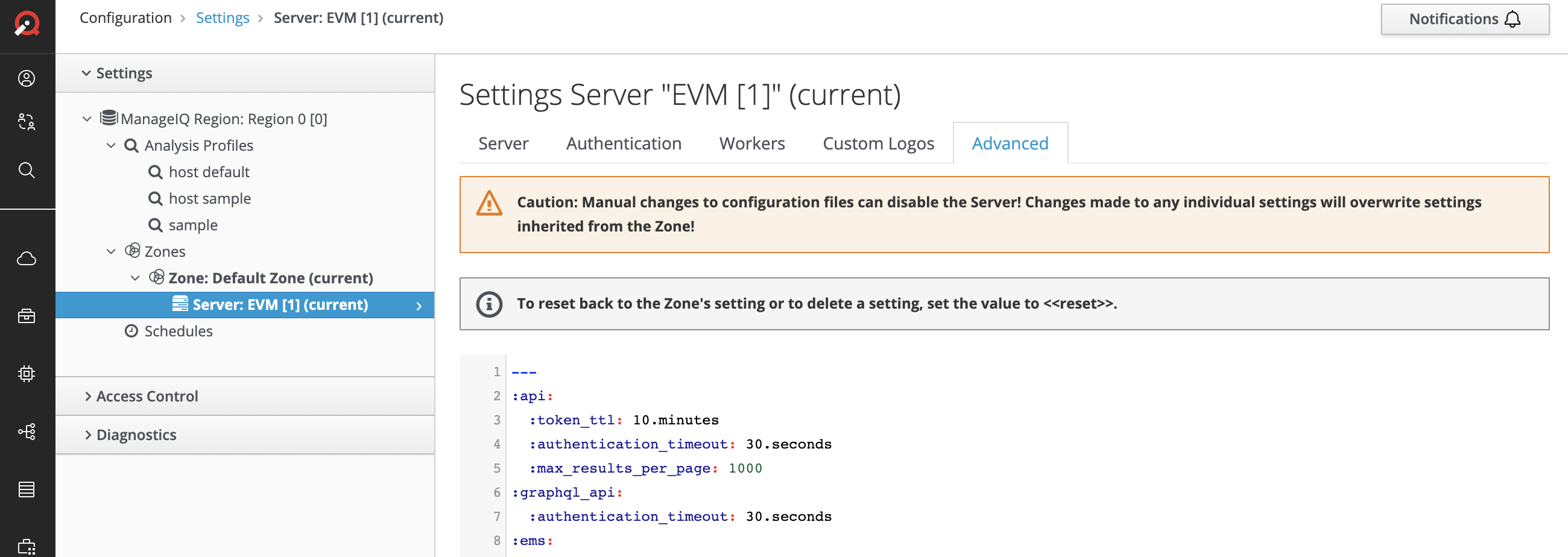

Screenshot showing the ManageIQ Advanced settings tab
From the Advanced settings screen scroll down to the :authentication: section and set :debug: to true

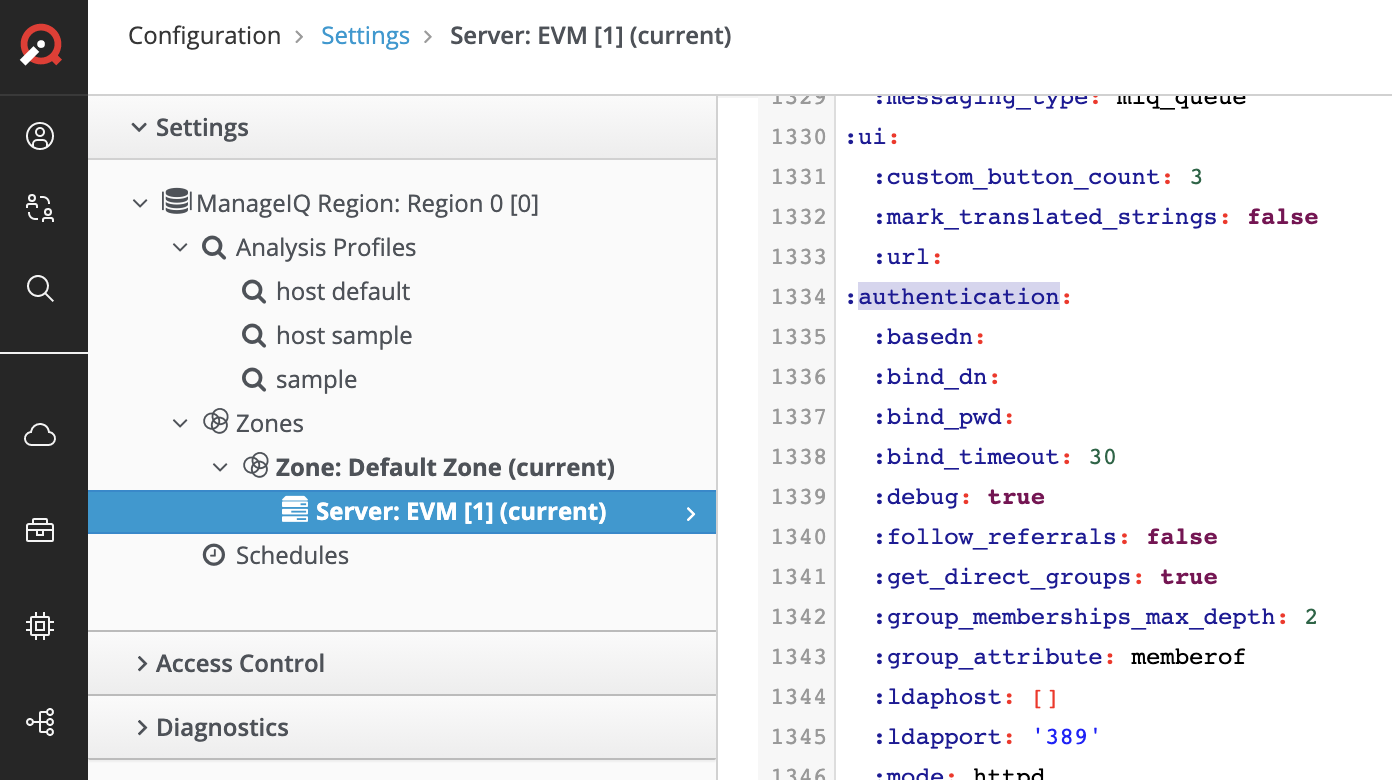

Screenshot showing the :authentication: :debug: set to true
Once the :authentication: / :debug: is to true tail the ui pod’s log while attempting to authenticate a user.
The following example shows how to check for the user’s request headers from the ui pod’s logs.
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc logs -f 1-ui-abcdef1234-12345
_content omitted_
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) user_details_from_headers(username=byouruncle)"}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) External-Auth remote user request.headers:"}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) X-REMOTE-USER = \"byouruncle\""}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) X-REMOTE-USER-FIRSTNAME = \"Bob\""}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) X-REMOTE-USER-LASTNAME = \"Youruncle\""}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) X-REMOTE-USER-FULLNAME = \"Bob Youruncle\""}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) X-REMOTE-USER-EMAIL = \"byouruncle@byouruncle.example.com\""}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) X-REMOTE-USER-DOMAIN = \"byouruncle.example.com\""}
... "message":"MIQ(Authenticator::Httpd#log_auth_debug) X-REMOTE-USER-GROUPS = \"EvmGroup-super_administrator\""}
Adjusting Log Level
To gain additional insight to authentication issues adjust the log level to debug on the httpd pod, which can be done with the following commands:
- Login
$ oc login -u admin -p <pw> https://<my-container-host>/
- Edit the httpd configmap:
$ oc edit configmaps/httpd-configs -n my-miq-project
- This command will open an editor where you can adjust the log level:
Search for LogLevel and change it from: LogLevel warn To: LogLevel debug, and save the changes.
- Get the name of the httpd pod
$ oc get pods -n my-miq-project | grep httpd
httpd-abcdef1234-12345 1/1 Running 0 22d
- Delete this httpd pod, which will result in a new one being created.
$ oc delete pod httpd-abcdef1234-12345 -n my-miq-project
- Within a short time a new httpd pod will be created with the new LogLevel
$ oc get pods -n my-miq-project | grep httpd
httpd-abcdef7892-65432 1/1 Running 0 22d
- Now the httpd logs will have additinal debug information
$ oc logs -f httpd-abcdef7892-65432 -n my-miq-project
Reporting Issues
When reporting issues, in addition to the Questions presented in the above sections, it is also helpful to include the contents of the orchestrator log, which can be captured with the following command:
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc logs orchestrator-abcdef123-12345 -n my-miq-project > my_orchestrator_pod.log 2>&1
If an issue is encountered it is important to capture the logs when the issue is reproduced and not just the logs from the time ManageIQ was initially deployed. To do this, stream the pods’ logs with the -f flag while the issue is being recreated.
In one window run these commands to capture the UI pod’s logs:
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc logs -f ui-abcdef123-12345 -n my-miq-project > my_ui_pod.log 2>&1
In another window run these commands to capture the httpd pod’s logs:
$ oc login -u admin -p <pw> https://<my-container-host>/
$ oc logs -f httpd-abcdef123-12345 -n my-miq-project > my_httpd_pod.log 2>&1
While the above commands are running in separate windows reproduce the authentication issue. Then save the output of the commands and include them in the issue report.
It would also be valuable to capture the Apache OpenID-Connect configuration file in the issue report.
The following example shows how to capture the Apache OpenID-Connect configuration file.
$ oc login -u admin -p <pw> https://<my-container-host>/
$ mkdir tempdir
$ oc rsync httpd-5656b77789-vjgnm:/etc/httpd/conf.d ./tempdir
$ ls ./tempdir/conf.d/authentication.conf
Known Issues
When a user being authenticated belongs to a large number of groups, on the order of hundreds,
see: OIDC Auth fails with “oidc_cache_set: could NOT store X bytes”
This issue is resolved by adding the following line to the OpenID-Connect configuration.
OIDCCacheShmEntrySizeMax 65536
Although this has been addressed upstream in ManageIQ by these two PRs, it is worth mentioning here in case a user is not running the version with this fix.
